November 17, 2018

Chassis Focus – Neil Cragg

Chassis: Team Associated B64
Motor: Reedy 5.5T
ESC: Reedy 510R
Batteries: Reedy Zappers 5800mAh
Radio/Servo: KO/Reedy
Tires: Schumacher (handout)
Body: Pro-Line Elite

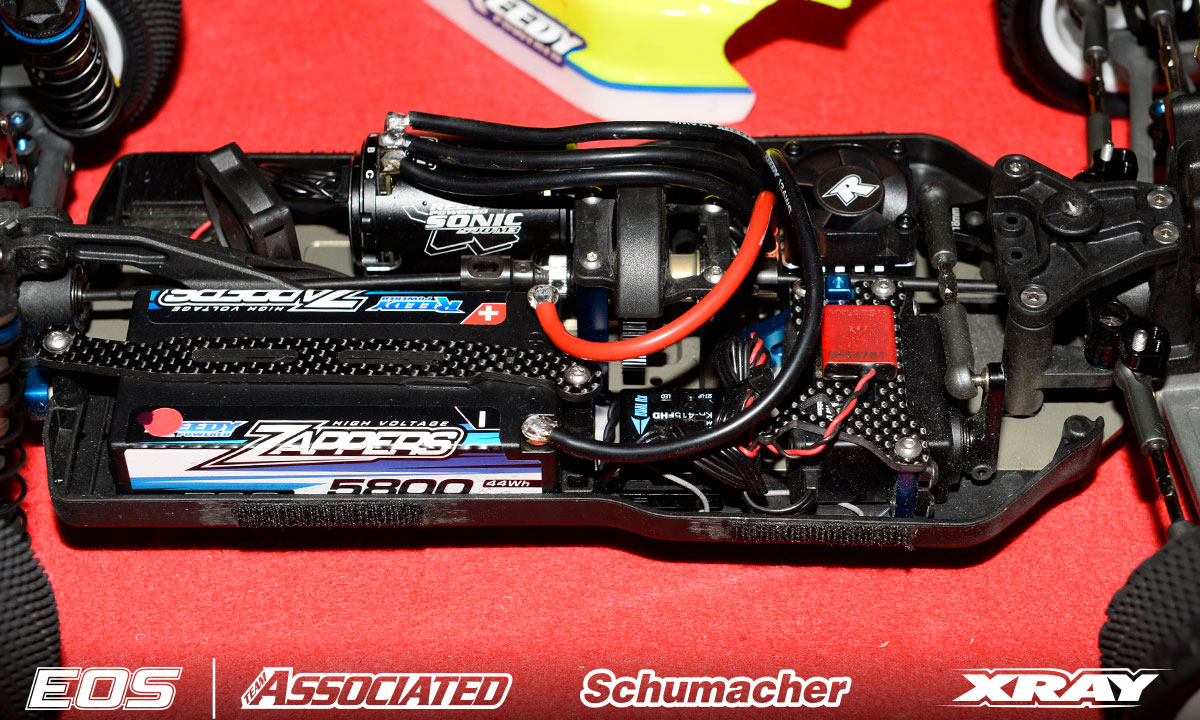

Remarks – Long time Team Associated ambassador Neil Cragg is racing a B64 with a number of options and interesting solutions here at the Ptak Warsaw Expo. Having equipped his buggy with lower front and rear shock towers, the British driver is also using the B6 rear arms and hubs in an inverted left and right position. The rear shock tower is mounted in front of the gearbox instead of the standard rear position, and the front gearbox is raised 2mm. Neil is also using the rear HRC arms mount flipped upside down so as to obtain a lower roll centre.
